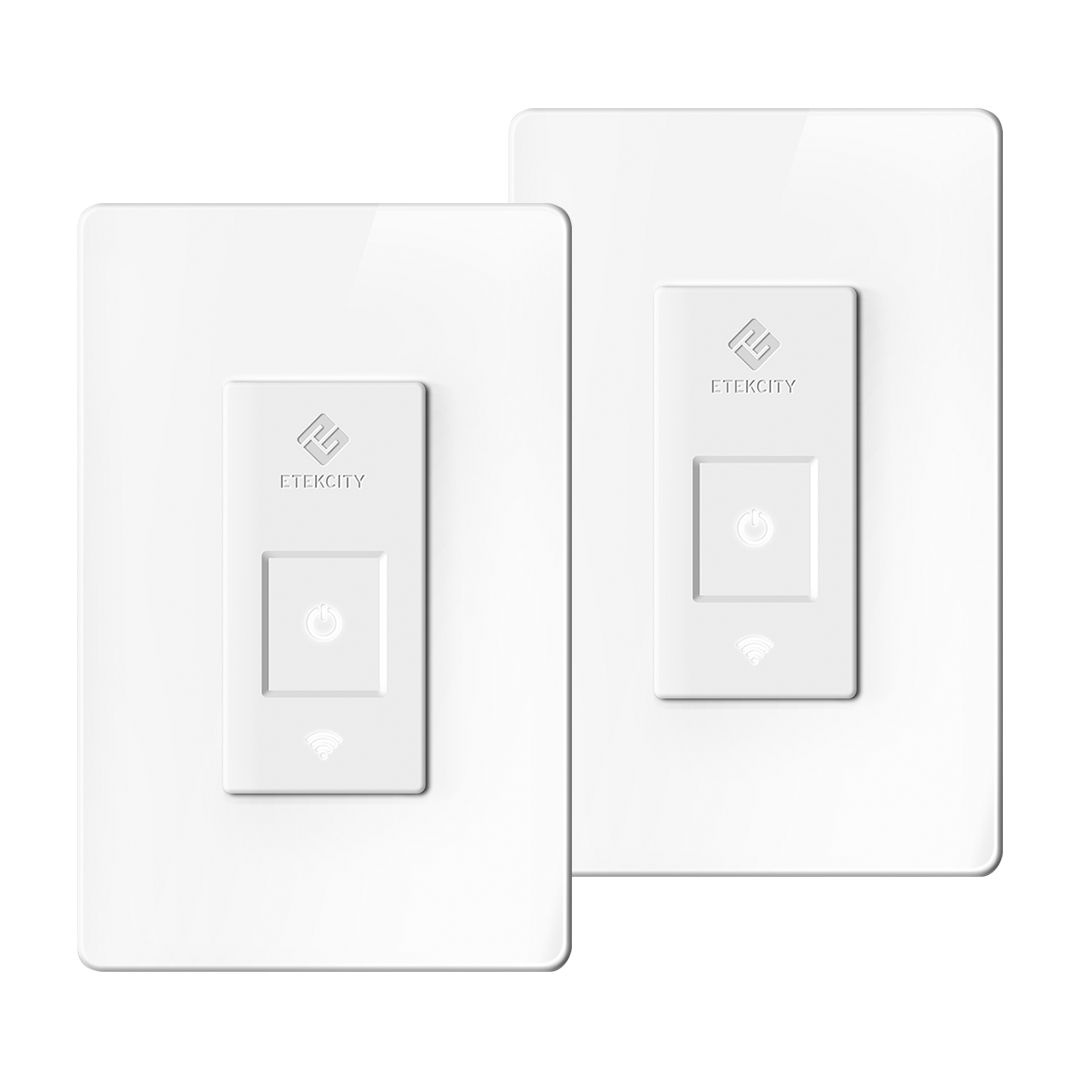

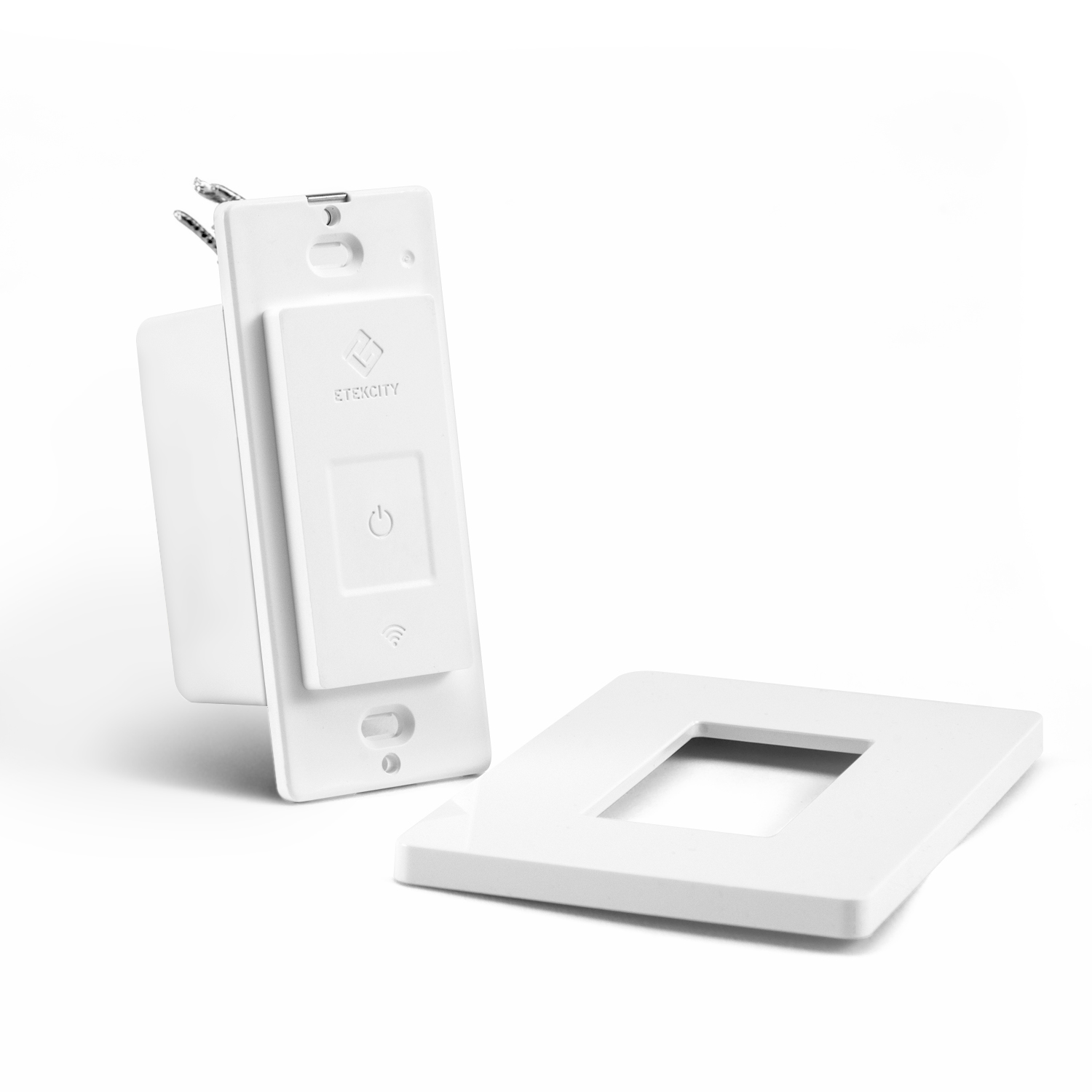

Etekcity Smart WiFi 3-Way Light Switch

Model: ESWL03

  • Control from Anywhere: Thanks to the VeSync app, you can control your 3-way light switch through your smartphone from anywhere you have an internet connection. Whether you’re already lying down, or you’re coming home late at night, simply turn your switch on/off with your phone.

  • Smart Home Friendly: Compatible with Amazon Alexa and Google Home, the 3-way light switch lets you easily control your lights via voice command. Convenient when your hands are full, or you’re far away from your light switch.

  • Easy Setup with the VeSync App: Our user-friendly Quick Start Guide and step-by-step app instructions help you set up your smart light switch with VeSync quickly and easily. Note: For hardware installation, only install the smart light switch if you are comfortable with electrical work, or contact a qualified electrician.

  • Schedule & Timer: Set schedules and timers to turn your lights on or off. Keep your home on your schedule, and enjoy the convenience of hands-free control.

  • Away Mode: Boost your home security with Away Mode. Your switch will turn on and off in intermittent intervals to give the appearance someone is home.

  • Stay Online: This smart light switch features a strong and stable connection both with the app and to the WiFi network. It even reconnects automatically after a power outage.

  • Purchase Details: This 3-way light switch requires a secure 2.4 GHz WiFi network connection and a neutral wire. ETL and FCC listed. Enjoy 1-year buyer’s assurance (with a free option to extend it by 1 more year) and lifetime support from our friendly Etekcity customer support team.

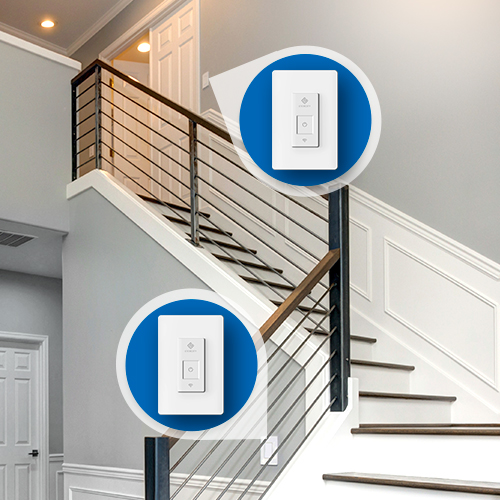

Convenient Access   Whether downstairs and upstairs, or on opposite sides of the hall, control your light from anywhere in your house, even from your smart phone.

Convenient Access

Whether downstairs and upstairs, or on opposite sides of the hall, control your light from anywhere in your house, even from your smart phone.

1 App for Every Device   A one-stop platform for the newest smart home innovations, the VeSync app pairs with Etekcity’s smart outlets, light bulbs, and much more to bring you a truly integrated experience.

1 App for Every Device

A one-stop platform for the newest smart home innovations, the VeSync app pairs with Etekcity’s smart outlets, light bulbs, and much more to bring you a truly integrated experience.

Indicator Light   Monitor your switch’s connectivity & status with a simple glance at the indicator light.

Indicator Light

Monitor your switch’s connectivity & status with a simple glance at the indicator light.



Specifications



Communication Mode

IEEE802.11b/g/n (WiFi)

Communication Frequency

2.4GHz

Wireless Distance (Outlet to Router)

98-164 ft / 30-50 m (max visible range)

Operating Environment

14°F–104°F / -10°C–40C°

Storage and Transportation Environment

-4o–158oF / -20–70oC

Product Dimensions

4.92 x 3.14 x 1.67 in / 12.5 x 8 x 4.25 cm

Compatible Systems

iOS™ 8.0 or higher / Android™ 4.3 or higher

Maximum Switch Current

15A / 1800W

Maximum Load

1800W incandescent

Power

AC 120V, 60Hz




Troubleshooting



Why aren’t my light switches connecting to the VeSync app?

  • During the setup process, you must be connected to a secure 2.4GHz WiFi network.

  • Make sure the WiFi password you entered is correct.

  • Try moving your router closer to your smart switch (164 ft / 50 m visible range is best).

  • Make sure you don’t have too many devices connected to your router. Your router may have a limit of connected devices which can be turned off in your router settings.

  • Close and reopen the VeSync app.

  • Clear your VeSync app cache.

  • Reset your smart outlet.




How do I change my WiFi network to a 2.4GHz WiFi network?

  • Most dual-band routers support both 2.4G and 5G networks. Select the WiFi name that does not end in “_5G”.

  • If your phone is attempting to connect to the 5G network, try “forgetting” or temporarily disabling the 5G network.

  • If you are unsure, or if the 2.4G and 5G networks do not have separate names, please contact your internet service provider.




I can’t find the “Etekcity” access point during configuration.

  • Press and hold the power button on the light switch for 5 seconds to trigger Configuration Mode. The “Etekcity” access point will appear in your list of available WiFi connections.

  • During Configuration Mode, the WiFi Indicator will slowly blink white (1 blink per second). You will have 10 minutes to pair the light switch with your phone.




My light switch is offline.

  1. Make sure your router is connected to the internet, and your phone’s network connection is working properly.

  2. Delete the offline light switch from the VeSync app. Swipe left (iOS) or tap and hold (Android), and tap Delete.

  3. Reset the light switch by pressing and holding the power button for more than 15 seconds. The WiFi Indicator will blink rapidly then turn a solid white.

  4. Once the light switch has been deleted and reset, reconfigure your light switch with the VeSync app.

  5. When the light switch is online again, go to Device Settings, and tap Upgrade Firmware.

  6. Note: Power outages, internet outages, or changing WiFi routers may cause your light switch to go offline.




After adding my smart light switch to the VeSync app, why won’t the smart light switch icon appear on the My Home screen?

  • Refresh the VeSync menu by swiping down on the screen.

  • Close and reopen the VeSync app.




Amazon Alexa or Google Assistant can’t find my app or can’t discover my light switch.

  • Make sure your wireless network router is close enough to your smart light switch. The smart light switch must be within a 164 ft / 50 m visible range from the router.

  • Check that your Amazon Alexa or Google Assistant is working properly.




Why isn’t my light switch turning on/off as scheduled?

  • Make sure that the schedule is still turned on.

  • Make sure that your phone’s Location Services are turned on.

  • Make sure the smart light switch is connected to a working network and is not offline.
