Etekcity Smart WiFi Dimmer Switch

Model: ESWD16

  • Voice Control: Enjoy hands-free control of your lights. Just use Alexa or Google Assistant to control how much light you want in your home.

  • Anytime, Anywhere: Use the VeSync app to control your lights from anywhere, even if you’re away from home.

  • Schedule & Timers: Schedule when you want your lights to automatically turn on and off throughout the day. You can also set a timer, so your lights dim or turn off while you take a nap or watch a movie.

  • Dimmer Function: Adjust the brightness levels of your lights to create the ideal environment for reading, napping, and more.

  • RGB Atmosphere Light: Choose your preferred color for the indicator light. The indicator light can also function as a night light.

  • Safety First: The light switch is constructed with flame retardant material. This is a single pole light switch that requires a neutral wire and a 2.4G WiFi network. FCC certified. ETL listed.

  • Buyer’s Assurance: Your purchase comes with lifetime customer support and 1-year buyer’s assurance with the option to extend it by another year.



Connect to VeSync   Use the free VeSync app to control your lights from anywhere, even when you’re not home.

Connect to VeSync

Use the free VeSync app to control your lights from anywhere, even when you’re not home.

Voice Control   Experience hands-free control of your lights by connecting the dimmer switch to Alexa or Google Assistant.

Voice Control

Experience hands-free control of your lights by connecting the dimmer switch to Alexa or Google Assistant.

Dimmer Function   Adjust the brightness of your lights to create the ideal home environment at any point during the day.

Dimmer Function

Adjust the brightness of your lights to create the ideal home environment at any point during the day.

No Hub Needed   No WiFi hub is required, so you don’t have to worry about another piece of equipment cluttering your home.

No Hub Needed

No WiFi hub is required, so you don’t have to worry about another piece of equipment cluttering your home.


Brightness Memory   The dimmer switch turns on with the same brightness as when you last turned it off.

Brightness Memory

The dimmer switch turns on with the same brightness as when you last turned it off.

Schedules & Timers   Create schedules and timers for when you want your lights to turn on and off.

Schedules & Timers

Create schedules and timers for when you want your lights to turn on and off.

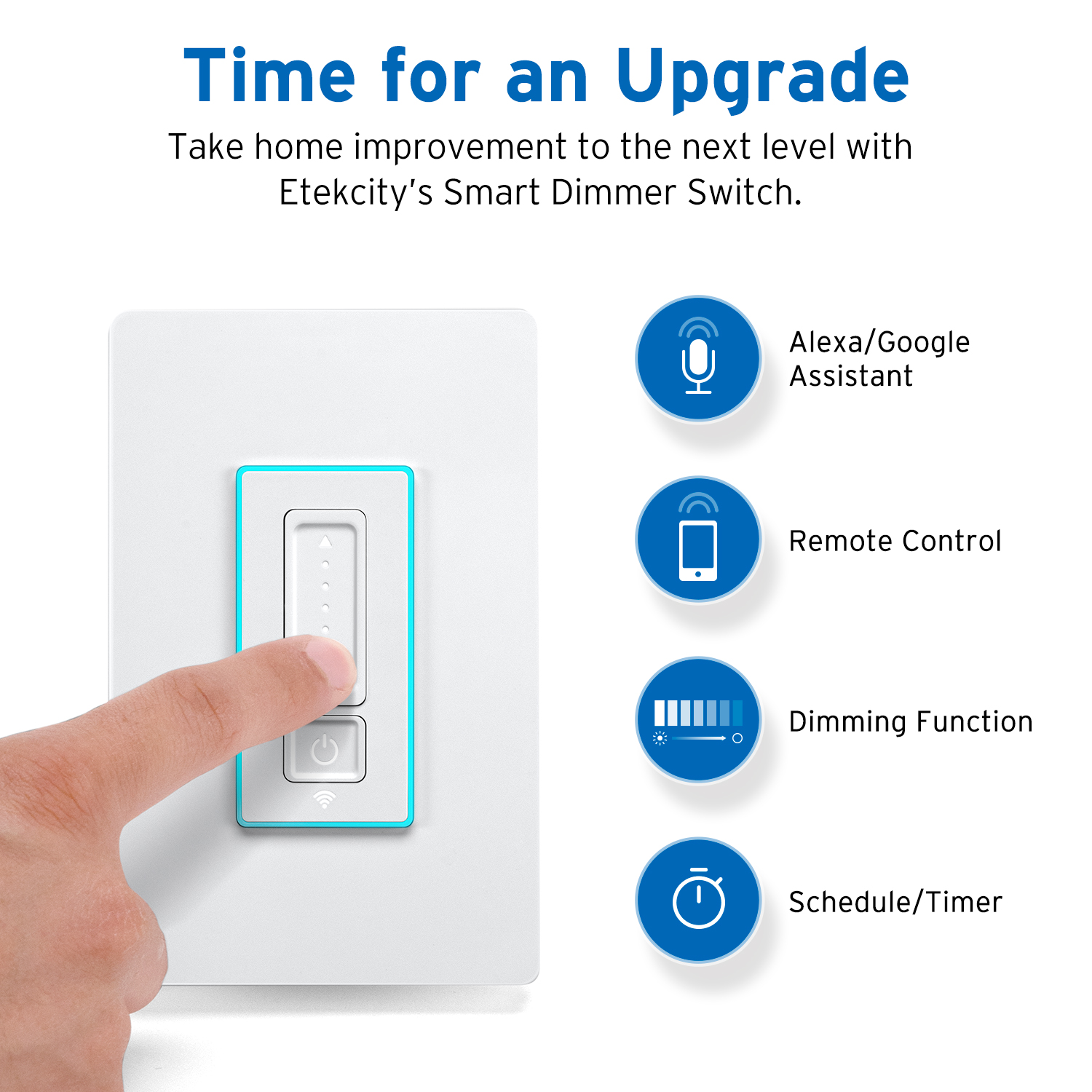

A Smarter Home   Give your home an upgrade with Etekcity’s innovative smart devices.

A Smarter Home

Give your home an upgrade with Etekcity’s innovative smart devices.

Easy-to-Use   Easily control your lights by using the buttons on the dimmer switch.

Easy-to-Use

Easily control your lights by using the buttons on the dimmer switch.




Specifications



Product Dimensions

4.92 x 3.14 x 1.67 in / 12.5 x 8 x 4.25 cm

Communication Mode

IEEE802.11b/g/n (WiFi)

Communication Frequency

2.4GHz

Wireless Distance (Switch to Router)

98–164 ft / 30–50 m (max visible range)

Maximum Load

LED/CFL: 180W
Halogen/Incandescent: 400W

Power

120V, 60Hz

Operating Environment

14°–100°F / -10°–38°C

Storage and Transportation Environment

-4°–158°F / -20°–70°C

Compatible Systems

iOS™ 8.0 or higher /
Android™ 4.3 or higher




Troubleshooting



Why isn’t my dimmer switch connecting to the VeSync app?

  • During the setup process, you must be on a secure 2.4GHz WiFi network.

  • Make sure the WiFi password you entered is correct.

  • Your router should be within 164 ft / 50 m visible range of the dimmer switch.

  • Your router may need to be at a higher location and away from appliances (such as microwave ovens, refrigerators, electronic devices, etc.) to avoid signal interference.

  • Make sure you don’t have too many devices connected to your router (10 or fewer is best).

  • Close and reopen the VeSync app.

  • Clear your VeSync app cache.

  • Reset the dimmer switch.




I can’t find the “Etekcity” access point during configuration.

  • Press and hold the power button on the dimmer switch for 5–15 seconds to trigger Configuration Mode. The “Etekcity” access point will appear in your list of available WiFi connections.

  • During Configuration Mode, the LED light on the dimmer switch will slowly blink. You will have 10 minutes to pair the dimmer switch with your phone.




My dimmer switch is offline.

  1. Make sure your router is connected to the internet, and your phone’s network connection is working properly.

  2. Delete the offline dimmer switch from the VeSync app. Swipe left (iOS) or tap and hold (Android), and tap Delete.

  3. Reset the dimmer switch.

  4. Once the dimmer switch has been deleted and reset, reconfigure the dimmer switch with the VeSync app.

  5. When the dimmer switch is online again, go to Device Settings, and tap Upgrade Firmware.

    Note: Power outages, internet outages, or changing WiFi routers may cause the dimmer switch to go offline.




After adding my dimmer switch to the VeSync app, why won’t the dimmer switch icon appear on the My Home screen?

  • Refresh the VeSync menu by swiping down on the screen.

  • Close and reopen the VeSync app.




Amazon Alexa or Google Assistant can’t find my app or can’t discover my dimmer switch.

  • Make sure your wireless network router is close enough to the dimmer switch. The dimmer switch must be within a 164 ft / 50 mvisible range from the router.

  • • Check that your Amazon Alexa or Google Assistant is working properly.




Why isn’t my dimmer switch turning on/off as scheduled?

  • Make sure that the schedule is still turned on.

  • Make sure that your phone’s Location Services are turned on.

  • Make sure the dimmer switch is connected to a working network and is not offline.




What You’ll Need

  • Non-Contact Voltage Tester

  • Wire Nuts (twist-on wire connectors)

  • Pliers

  • Philips-Head Screwdriver

  • Flathead Screwdriver

  • Insulated Gloves

How to wire the smart dimmer switch

  1. Connect the white wire to the neutral wire, which is usually white.

  2. Connect the green wire to the ground wire, which is usually green.

  3. Connect the black line wire to the line wire, which is usually black or red.

  4. Connect the red load wire to the load wire, which may be any color except green.

    Note: Only install the smart dimmer switch if you are familiar with electrical work. Please refer to the user manual and product labels for clear guidance.
